Design the right heat sink for your application

The HeatSinkCalculator is the perfect software tool for engineers and designers to quickly and easily design and analyze a heat sink.

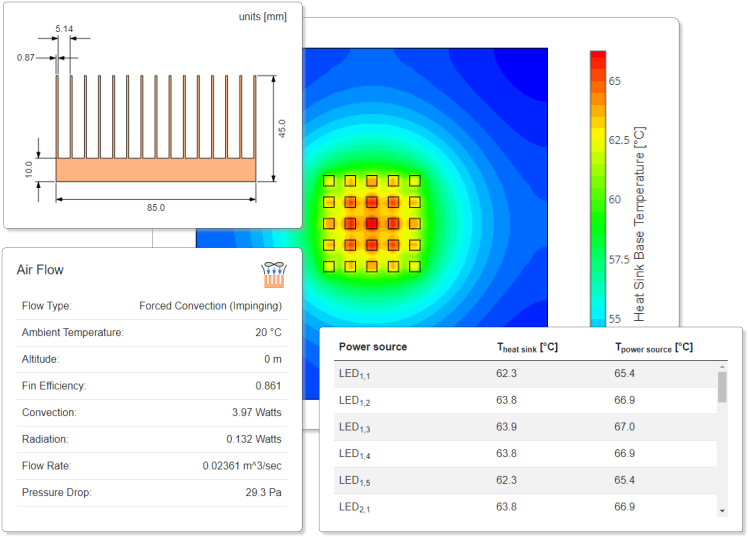

Results Image

Used by companies around the world

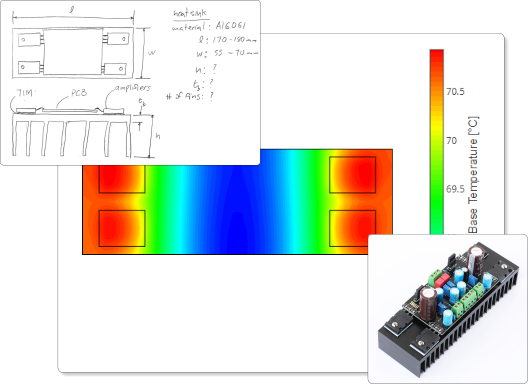

Get to your final design faster

Iterate though multiple heat sink design analyses in a few minutes to find the best design for your application and avoid building multiple costly prototypes

Dimensions/Optimization Image

Effortlessly find your optimum design

No need to guess what heat sink dimensions produce the lowest temperature design. The calculator will automatically determine them for you.

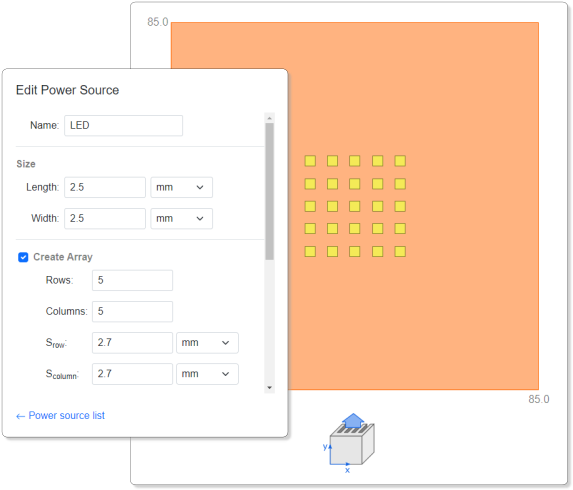

Power Source Image

You don't need to be a thermal expert

Simple and straight forward inputs make it easy to run your analysis. Enter your heat sink dimensions, power(heat) source values and flow conditions, and immediately get results.

Air Flow Image

Quickly determine the best cooling method for your design

Analyze natural convection cooled heat sinks in multiple orientations for your application. Are you using a fan for high power components? Evaluate the fan cooled heat sink's performance by entering the fan curve data points. Select among impinging, ducted and bypass flow based on your application.
